# The Semi-Symmetric Metric Connection – Part I: The Background

Many years ago (getting close to 30 now), while doing my PhD (Voros 1996) in theoretical physics on mathematical extensions to General Relativity – and in particular, on Einstein’s own “unified field theory” – I happened across a book by Jan Schouten (1954) called Ricci-Calculus, which was an introduction (by a mathematician) to tensors and their applications, especially to geometrical thinking and analysis.

Now, if you know General Relativity (hereafter “GR”) – which is Einstein’s theory of gravitation – then you’ll know that Einstein worked with geometrical objects called “tensors” (or more precisely, tensor fields) to formulate the field equations of GR using “tensor analysis” or “tensor calculus”. (“What’s a tensor,” you ask? Well, a tensor is a bit like a vector, only more so. 🙂 In actual fact, a vector is a particular type of tensor, but this is not the place for more detailed definitions.)

This formulation was done principally in what is known as the “component” (notation) form of tensor analysis, which uses symbolic representations of the component functions that describe an object, rather than a more geometrically-oriented abstract representation of the object itself. (This latter is much more common these days, and mathematicians tend to prefer to stick to the elegant component-free representation for the most part. Physicists, on the other hand, tend to work more directly with the component notation, mostly for pragmatic reasons, given that they are usually wanting to carry out calculations, which generally requires accessing individual components.)

\begin{brief explanatory aside}

For example, an ordinary 3-vector (i.e., a vector in 3-dimensional space) is often written simply as a boldface letter v, which emphasises its “geometric object” aspect. But, when we are instead looking at the vector’s components along the x, y and z directions, it is often written something like this:

$\mathbf{v} = v_x \mathbf{\hat{x}} + v_y \mathbf{\hat{y}} + v_z \mathbf{\hat{z}}$

where the “hat” forms $\mathbf{\hat{x}}, \mathbf{\hat{y}}$ and $\mathbf{\hat{z}}$ represent the unit “basis vectors” that point in the $x$, $y$ and $z$ directions, respectively, and $v_x, v_y$ and $v_z$ represent the component functions of the vector v in the $x$, $y$ and $z$ directions.

The three basis vectors $\mathbf{\hat{x}}, \mathbf{\hat{y}}$ and $\mathbf{\hat{z}}$ can also be written as $\mathbf{\hat{x}}{}^1, \mathbf{\hat{x}}{}^2,$ and $\mathbf{\hat{x}}{}^3$, or simply by $\mathbf{\hat{x}}{}^i$ where x can represent a “generic” coordinate (not just the x direction), and it is understood that the index i ranges over all (in this case, three) dimensions. Thus, $\mathbf{\hat{x}}{}^1 = \mathbf{\hat{x}}$, $\mathbf{\hat{x}}{}^2 = \mathbf{\hat{y}},$ and $\mathbf{\hat{x}}{}^3=\mathbf{\hat{z}}$. The superscript notation should not be confused with powers, so $\mathbf{x}^2$ is not “x squared”, but rather “coordinate 2”, and so on). In this way, the above 3-vector v can then be represented by

$\displaystyle \mathbf{v} = \sum_{i=1}^3 v_i \mathbf{\hat{x}}{}^i = v_1 \mathbf{\hat{x}}{}^1 + v_2 \mathbf{\hat{x}}{}^2 + v_3 \mathbf{\hat{x}}{}^3$

where the $v_i$ are the respective components of the vector, in whatever general coordinate system $\mathbf{\hat{x}}{}^i$ is being used, which does not necessarily need to be the more familiar simple x, y, z of conventional Cartesian coordinates. The $\mathbf{\hat{x}}{}^i$ in this case could in fact represent unit basis vectors for any convenient 3-dimensional coordinate system that we may wish to use (such as polar coordinates, $r, \theta$, and $\phi$, for example). This is one of the (many) beauties of tensor notation – the general form of an equation in component notation is the same irrespective of the specific coordinate system used, but one needs to be aware that the values of the component functions will generally change with a change of coordinate system, because the basis vectors themselves are different in different coordinate systems. The geometrical object itself doesn’t change, of course, but any representations of it will obviously change if the coordinates which are being used to represent it change. In this way, the vector-object v can be represented by its components $v_i$, for some general coordinate system $\mathbf{\hat{x}}{}^i$. Purists tend to baulk at statements like “the vector $v_i$” because, strictly speaking, those $v_i$ are the components of the vector v (in a given coordinate system $\mathbf{\hat{x}}{}^i$), not the vector itself. However, this misuse of language is very common and widely understood, and it persists because it does help to simplify discussions of tensors (of which a vector is a particular type, as noted). In the above equation, the summation sign $\sum$ is often omitted, since repeated upper and lower indices – the index i in this case – usually imply a summation, so the above equation would more conventionally be written

$\displaystyle \mathbf{v} = v_i \mathbf{\hat{x}}{}^i$

which saves a bit of writing (although the index placements – i.e., up or down – can change in more general spaces than the 3-D space with which we are familiar).

\end{brief explanatory aside}

So, to the matter at hand.

As we will see later, the geometrical space that is used as the basis for GR (“Riemannian” or sometimes just “Riemann” geometry) has a special set of assumptions about the nature of some important objects defined in the geometrical space, mostly to do with certain types of “symmetry” they possess. Now, as I was working on mathematical extensions to GR – and in particular Einstein’s own non-symmetric unified field theory (although I also looked at a few others along the way) – you might get an intuitive sense right away that because of its “non-symmetric” nature it was going to be even more complicated than anything found in (symmetric) GR (which, we’ll see, is complicated enough!). And indeed it was, both in terms of the underlying geometry, as well as in terms of the field equations for the two fields Einstein was attempting to unify, these being gravitation (which is what GR is a theory of, as mentioned) as well as electromagnetism.

We will see later that the geometrical space of GR, Riemannian geometry, can be derived from two key assumptions concerning two fundamental objects found in certain geometrical spaces – the metric tensor, usually denoted by $g_{\mu\nu}$, which essentially defines distances – and the connection, usually denoted by $\Gamma^\alpha_{\mu\nu}$, which essentially defines how to form derivatives of functions in a space that may be “curved” (there are of course other properties of these objects, but I’ll delay any further discussion until much later). In particular, because of the possibly-curved nature of generalised geometric spaces, the familiar simple partial derivatives of functions need to be augmented by additional terms involving the connection in order to produce what are called “covariant” derivatives, which are important when working with differential equations in general non-flat (i.e., “curved”) spaces.

In general, the metric of a geometrical space is a “symmetric” tensor, which can be represented – for a four-dimensional space – by a symmetric $4\times4$ matrix of functions (i.e., the components reflected across the main diagonal from each other are the same), so that there are only 10 independent functions among the 16 components in total that are found in a $4\times4$ matrix.

The connection, by contrast, is not a tensor, and does not necessarily possess any sort of “symmetry”, so it can in general be “non-symmetric”. However, any general non-symmetric connection can always be uniquely decomposed into the sum of a symmetric part which is not a tensor, and an anti-symmetric part which is a tensor, which latter is generally known as the “torsion” tensor (the anti-symmetry introduces a kind of “twisting” into the connection, hence its name).

The important assumptions underlying the Riemannian geometry of GR are that if, in a general space, the connection is assumed to be (i) symmetric (and thereby having no torsion), and (ii) metrical or metric (sometimes metric compatible), which means that the covariant derivative of the metric tensor with respect to that connection vanishes (i.e., = 0), then one recovers uniquely the underlying Riemannian geometry of GR, as well as the extremely important relationship which defines the connection wholly in terms of functions of the metric – the so-called “Christoffel symbol” or Christoffel connection, which we might therefore characterise as the (unique) symmetric metric connection.

This relationship between metric and connection ends up making every important tensor in the space – including the tensor known as the curvature (or Riemann) tensor – ultimately a function of the metric. It is in this way that Einstein’s theory of gravitation is a pure geometrical theory of gravity, because a curvature tensor wholly expressible in terms of the metric produces a geometrical space whose “shape” is, as it were, “doubly” defined by way of the metric, while the field equations of GR are ultimately equations for the metric via the curvature as it relates to and is influenced by the distribution of matter-energy in spacetime. In other words, in GR, the mathematical geometrical “space” (Riemannian geometry) is assumed to represent actual spacetime itself – quite successfully, as it turns out, since it has been fully verified in every experimental test it has ever been subjected to for the last century (although see later in this series of posts for some further comments about this).

Pre-empting things a little bit (I’ll go into more detail in later posts), Einstein’s original field equations of 1915 can be written in the form:

$G_{\mu\nu} = k T_{\mu\nu}, \qquad (1)$

where $G_{\mu\nu}$ is a complicated geometrical object (now called the Einstein tensor, built out of objects derived from the Riemann/curvature tensor, and thus ultimately out of functions of the metric) which defines the gravitational field; and $T_{\mu\nu}$ is a tensor describing the distribution of matter-energy in spacetime (the energy-momentum tensor), which is related to $G_{\mu\nu}$ by a constant involving important physical quantities, which, for simplicity, we will just render here as k. (In Nov 1915 Einstein actually wrote it in a slightly different form, but the separation of geometry and matter-energy on each side of the equation was still there). The physicist John A. Wheeler famously said of the field equations of GR that: “Matter tells spacetime how to curve. Spacetime tells matter how to move.” Here, in the above equation (1), matter is T, and spacetime is G.

Now, my PhD work was on a non-symmetric generalisation of GR undertaken by Einstein himself, begun about a decade after GR was published. Einstein’s unified field theory (hereafter “EUFT”) dropped the assumptions of symmetry of the underlying space in an attempt to see if electromagnetism could also be incorporated into such an expanded non-symmetric geometrical theory. The search for such a unified field theory was prompted in Einstein’s mind by the (to him quite unsatisfactory) separation of geometric field and mass-energy in Equation (1). He said of it (writing in Schilpp 1949, p.75):

The right hand side is a formal condensation of all things whose comprehension in the sense of a field-theory is still problematic. Not for a moment, of course, did I doubt that [the] formulation [$G_{\mu\nu}=kT_{\mu\nu}$] was merely a makeshift in order to give the general principle of relativity a preliminary closed expression. For it was essentially not anything more than a theory of the gravitational field, which was somewhat artificially isolated from a total field of as yet unknown structure.

And (Einstein 1954, p.311):

It is sufficient – as far as we know – for the representation of the observed facts of celestial mechanics. But it is similar to a building, one wing of which is made of marble (left part of equation), but the other wing is made of low grade wood (right part of equation). The phenomenological representation of matter is, in fact, only a crude substitute for a representation which would do justice to all known properties of matter.

As I noted in my PhD thesis (1996, chap. 2, sect. 2):

It was this “crude”-ness which prompted Einstein’s further work toward a unified field theory – a theory where there would be pure field equations with no explicit sources. In other words, EUFT was motivated by the desire to get rid of the $T_{\mu\nu}$ as a separate object. Rather, the particles would be regions where the (geometric) field is very inhomogeneous. It was his hope that a more general theory would eliminate the singularities which are present in GR.

It is widely held that he did not succeed in this quest (indeed, this is now folklore in physics – and many people have written about and sometimes lamented that he spent his final years on such a “fruitless” search…). However, my doctoral work demonstrated that the two main published analyses of the electrodynamics of EUFT – which allegedly showed that EUFT does not produce the correct equations of motion for charged particles and so must therefore be physically unviable – are actually inconclusive as a test of the viability of EUFT; so, therefore, it argues, one cannot conclude, on the basis of those analyses, that the theory is indeed unviable. Of course, this statement is quite different from saying the theory does work. It’s just that one cannot say anything, one way or the other about the viability of EUFT on the basis of those earlier analyses, and so – since it was rejected on the basis of those analyses – it was actually rejected for the wrong reason. This result was written up for a journal article, eventually published in 1995 (Voros 1995).

During the time that I was trying to work out the electrodynamical terms implied by a suitably-refined analysis of the electrodynamics of EUFT, I was delayed for several months while awaiting a copy of a PhD thesis from the University of Toronto. That thesis (Wallace 1940) contained the details of how to derive the equations of motion for charged particles when Maxwell’s electromagnetic theory is added to GR by making the $T_{\mu\nu}$ represent the electromagnetic field (the so-called “Einstein-Maxwell Theory”, EMT). If it was to be considered viable, then EUFT would need to be able to produce a similar, if not the same, result for equations of motion for charged particles as EMT does, so an understanding of how that was done in EMT was essential.

Very early in my candidature, I had found the aforementioned book by Schouten in the University’s library, which I was reading to try to understand more fully the various properties of non-Riemannian geometrical spaces – including the space of EUFT – and the various important tensors which can be defined within them in the general case beyond the special assumptions of the Riemannian geometry of GR. Internal disputes at UT led to a delay in getting hold of Wallace’s work, and it was due to this delay that, for something useful to do while I waited, I went back to Schouten’s book and continued exploring a most beguiling idea I had come across there earlier, during my preparatory research into general geometrical spaces – an idea which I’ll describe below.

As noted above, the Christoffel connection is the unique connection which emerges from assuming a (symmetric) metric tensor and a torsion-free (i.e., symmetric) connection, while simultaneously assuming that the connection is also metrical/metric (i.e., the covariant derivative of the metric with respect to that connection vanishes) – to wit: the symmetric metric connection. Schouten noted his results as part of a wide-ranging and magisterial discussion of the properties of general geometrical spaces, and then very elegantly derived specific cases resulting from particular assumptions to show how these special cases arise as a result of those assumptions.

One of the consequences for EUFT, arising from the relaxation of the simplifying assumptions of symmetry found in GR, was its incredible complexity, both in terms of the underlying geometry as well as the field equations – I used to (only half-jokingly) say that $\mathrm{EUFT} = \mathrm{GR}^3$. As a result, since I was interested in extensions to GR in general, even while looking at EUFT in particular, I was also always on the lookout for ideas that might indicate a somewhat smaller step from GR than is the full-blown leap into EUFT – that is, for somewhat more “minimalist” (as it were) extensions to the (Riemannian) geometry of GR which might include an object that could describe the electromagnetic field.

In electromagnetic theory, the electromagnetic field is often represented by an anti-symmetric tensor, conventionally written $F_{\mu\nu}$, which can also be represented by a $4\times4$ anti-symmetric matrix. In contrast to the 10 independent components of a $4\times4$ symmetric tensor/matrix (like the metric, say), an anti-symmetric $4\times4$ tensor/matrix has only 6 independent components. Now, it turns out that any general non-symmetric $4\times4$ tensor/matrix (which will have 16 components in total) can be written as the unique sum of a symmetric and an anti-symmetric (or “skew”) tensor/matrix (thus, 10 + 6 components in total). This observation was almost certainly one of the reasons Einstein sought to use a more generalised non-symmetric “fundamental tensor” (i.e., a non-symmetric $g_{\mu\nu}$), which would hopefully contain both the metric (gravity) and electromagnetism in a single geometrical formalism.

But, the electromagnetic field can also be represented by a 4-vector potential $A_\mu$ from which the skew tensor $F_{\mu\nu}$ is constructed. Indeed, from an empirical perspective, the so-named Aharonov-Bohm Effect shows that the potential is not merely a mathematical artifice, which it was assumed to be for quite a long time, but indeed actually has a physically measurable effect, so it can considered “real” in an important sense. So, perhaps, the focus on $F_{\mu\nu}$ when thinking about modelling electromagnetism could reasonably be relaxed in favour of another representation of the electromagnetic field, based on, say, a 4-vector … or so I thought.

Now enter a discussion from Shouten, chapter III, section 2, which introduces a type of connection called semi-symmetric for which the skew part (i.e., the torsion) has the most interesting form (which is clearly anti-symmetric in the indices $\mu$ and $\nu$)

$\tfrac{1}{2} S_\mu \delta^\alpha_\nu - \tfrac{1}{2} S_\nu \delta^\alpha_\mu$,

where $S_\mu$ is a 4-vector field, and $\delta^\mu_\nu$ is the so-called Kronecker delta (he called it the “unity tensor” and denoted it by $A^{\mu}_{\nu}$), such that

$\delta^{\mu}_{\nu} = 1$ for $\mu=\nu$ and ${}= 0$ for $\mu\neq\nu$,

which can be visualised as a $4\times 4$ matrix with 1’s on the diagonal and 0’s elsewhere:

$\delta^{\mu}_{\nu} = \begin{bmatrix} 1 & 0 & 0 & 0 \\ 0 & 1 & 0 & 0 \\ 0 & 0 & 1 & 0 \\ 0 & 0 & 0 & 1 \end{bmatrix}.$

In other words, a semi-symmetric connection seems to introduce a single 4-vector field into the connection! This is very interesting! And, furthermore, in Section 4 of the same chapter (on p.142), it is observed that there is a unique, “metric semi-symmetric connection”, which adds to the usual Christoffel connection of Riemannian geometry an extra term of the form

$S^\alpha g_{\mu\nu} - S_\mu \delta^\alpha_\nu$.

Wow! If ever there was a candidate for a minimalist extension of GR which introduces only a single 4-vector field, then this has got to be it! I called it the MSSC (“metrical semi-symmetric connection”) for a long time (indeed my main notebook and the sundry loose notes all use this shorthand term), but I have since recently found that mathematicians working on this topic tend to refer to it as the semi-symmetric metric connection, so I have now changed the way I refer to it in order to reflect this.

Hence, the upcoming series of posts, of which this one is marked as the first. The intention is to (re-)examine the semi-symmetric metric connection (SSMC) as a possible extension to the (Riemannian) geometry of GR, in order to see whether it might be able to model the addition of the electromagnetic field to GR in a geometrically-unified way, given that the SSMC adds only a single new object to Riemann geometry – to wit, an object of precisely a most very-highly suggestive form, namely, a 4-vector.

I spent a lot of time trying to nut this idea out over the years, starting about 1989/1990 or so when I first saw the SSMC in my preliminary reading of Schouten and more seriously subsequently to that, but each time have had to put it aside – not the least of which reason in those days was to actually finish the PhD on the topic I had started with – and definitely once the Wallace thesis showed up and I could get on with the electromagnetic calculations for EUFT. Following completion, of course, there was paid work to find, then marriage, etc, and life beyond the comparative haven (I now realise) of postgraduate study ramped up considerably – and had practically nothing to do with physics anymore – so the SSMC exploration project has waxed and waned over the years (mostly waned).

But, every few years I go back to my notes – the earliest ones were from around 1990/91 (now lost), and I copied some of the later loose notes into a workbook in early 1998 to ensure they didn’t get lost, too) – or sometimes directly to Schouten’s book itself, and try once again to derive plausible field equations implied by this form of connection, using arguments based in physics, much as Einstein had done for the field equations of GR arising from results in Riemannian geometry. But, I have never quite got there… It always feels like I get close, but my ability to shuffle tensors and tensor indices around is very oxidised these days, compared to 30 years ago, so it always seems as though there is some clever trick or an important insight that is dangling just beyond the reach of my increasingly-addled, and now quite middle-aged, brain …

Nonetheless, I hope that by making these explorations public and open – and having to clarify and explain to others what I am trying to do – it might lead to some new ideas or insights that might nudge my thinking over the edge and yield a coherent mathematical theory which, one hopes, could be tested – both for internal consistency and for empirical validity. A poster that was attached to the wall above my desk when I was a PhD student was a quote from 1969 Nobel Laureate Murray Gell-Mann. In an interview for Omni magazine in 1985 he noted (Schultz 1985, p.94):

In theoretical physics we use very simple tools: pencil and paper, eraser, chair and table. More important than any of these is the wastebasket. Almost every idea that occurs to a theoretical physicist is wrong. And it can be wrong on various grounds. The simplest grounds for being wrong have to do with logical inconsistencies. Once the idea or theory is logically consistent, there is also the question of whether it agrees with a system of well-established observations. The theory has to agree with itself, and it has to agree with nature. Those are the requirements, and most theoretical ideas don’t meet them. So we crumple up most of our pages of scribbles and throw them away.

When, after many a long session of scribbling tensor equations in the various theories I was looking at, it turned out that some calculation or other yielded either no result or landed in a dead-end from which no return was possible, I would – as Gell-Mann said – have to crumple up those pages of scribbles. Then, while hurling them towards the nearest wastebasket or recycling bin – and to the frequent consternation of my fellow students in our shared office – I would very often say out loud and with no small amount of exasperation: “and here’s another one for you, Murray!” 😉 Then, it would be time for more coffee, and a sanity break, before starting it up all over again… 🙂 Over the years people have asked me what it was like to do theoretical physics. The only sensible explanation I’ve ever been able to come up with is this: Listen to the second movement of Beethoven’s Ninth Symphony. For me, it’s like that.

So, that’s the background – how and why the SSMC came to be lodged in my mind 30-odd years ago. It has hung around on the backburner ever since, occasionally popping up for a brief visit, sometimes even being treated to a more extended stay for a bit of tensor-fun-and-games every few years. But, overall, I feel that I had pretty much stalled on the exploration of this quite lovely and elegantly simple idea. So, I am undertaking this series of blog posts with the intention of them hopefully triggering new insights to see if, just maybe, the SSMC could be the basis of a “minimalist” classical geometrically-unified theory of gravity and electromagnetism – the two “macroscopic” fields – based on extending GR. Even a “limited” unified theory of just these two macroscopic fields (as opposed to the full-blown complete unified field theory of everything which is the current Holy Grail of physics) would still be an interesting thing to have.

Of course, there have been attempts to add torsion to GR before (e.g., “Einstein-Cartan theory”) but these have tended to involve non-symmetric energy-momentum tensors and attempting to model “spin” (a property of quantum particles). I am not going down that line. At least, not until I see how far SSMC geometry can be pushed vis á vis classical electromagnetism. I also want to avoid the use of a variational procedure to derive the field equations, preferring rather to use arguments and ideas from physics to do so, just as Einstein did for GR. More on that later.

Sometimes, the process of explaining something to someone else causes unexpected connections and produces insights that a silent internal conversation with oneself will never yield.

Therefore, let’s see how it goes, this time around

Next time: Part II: Mathematical preliminaries

## References

Einstein, A 1954, Ideas and opinions, Bonanza Books, New York. Based on Mein Weltbild edited by Carl Seeling, and other sources. New translations and revisions by Sonja Bargmann.

Schilpp, PA (ed.) 1949, Albert Einstein: Philosopher-scientist, vol. 1, Harper and Row, New York.

Schouten, JA 1954, Ricci-calculus: An introduction to tensor analysis and its geometrical applications, 2nd edn, Springer-Verlag, Berlin.

Schultz, R 1985, ‘Interview: Murray Gell-Mann’, Omni, vol. 7, no. 8, May, pp. 54-58, 92-94.

Voros, J 1995, ‘Physical consequences of the interpretation of the skew part of $g_{\mu\nu}$ in Einstein’s nonsymmetric unified field theory’, Australian Journal of Physics, vol. 48, no. 1, pp. 45-53. http://adsabs.harvard.edu/abs/1995AuJPh..48…45V arXiv:gr-qc/9504047.

Voros, J 1996, On the electrodynamics of Einstein’s non-symmetric unified field theory, PhD thesis, Dept of Physics, Monash University, Melbourne, Australia. (Australian) National Bibliographic Database (ANBD) Record number 12976078. https://nla.gov.au/anbd.bib-an12976078. A version typeset as a normal-sized, two-sided book is available as a PDF from both Academia.edu and ResearchGate.

Wallace, PR 1940, On the relativistic equations of motion in electromagnetic theory, PhD thesis, Dept of Mathematics, University of Toronto, Toronto, Canada.

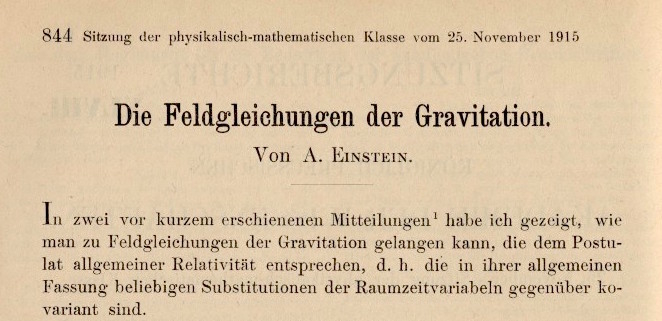

Main Image – the title section of the 1915 paper describing General Relativity: “The Field Equations of Gravitation”. Image Credit: John D Norton, University of Pittsburgh. https://www.pitt.edu/~jdnorton/teaching/HPS_0410/chapters/general_relativity_pathway/index.html
